Springfield XD 4" Service Schematic

To access product listings, click on the part, part number or part name.

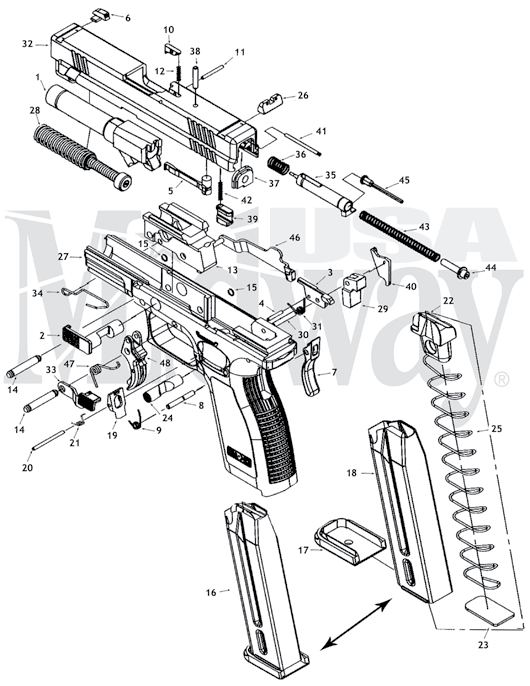

Springfield XD Service Schematic
  1. Barrel
  2. Disassembly Lever
  3. Ejector
  4. Ejector Pin
  5. Extractor
  6. Front Sight
  7. Grip Safety
  8. Grip Safety Pin
  9. Grip Safety Spring
  10. Loaded Chamber Indicator
  11. Loaded Chamber Indicator Pin
  12. Loaded Chamber Indicator Spring
  13. Locking Block
  14. Locking Block Pin, Trigger Pin
  15. Locking Block Pin Retainer, Trigger Pin Retainer
  16. Magazine
  17. Magazine Base
  18. Magazine Body
  19. Magazine Catch
  20. Magazine Catch Pin
  21. Magazine Catch Spring
  22. Magazine Follower
  23. Magazine Locking Plate
  24. Magazine Release Button
  25. Magazine Spring
  26. Rear Sight
  27. Receiver
  28. Recoil Spring Assembly
  29. Sear
  30. Sear Pin
  31. Sear Spring
  32. Slide
  33. Slide Stop Lever
  34. Slide Stop Lever Spring
  35. Striker
  36. Striker Dampening Spring
  37. Striker Locking Plate
  38. Striker Retainer Pin
  39. Striker Safety
  40. Striker Safety Lever
  41. Striker Safety Retaining Pin
  42. Striker Safety Spring
  43. Striker Spring
  44. Striker Spring Guide
  45. Striker Status Indicator
  46. Trigger Bar
  47. Trigger Bar Spring
  48. Trigger with Safety
