How to Check Headspace on an AR-15

Larry Potterfield • August 24, 2023
Guns Gunsmithing

Before you attach a new barrel to your AR-15, it's important to check headspace. If the headspace isn't correct you need to fix it before proceeding.

Start with a stripped bolt. It needs to have both the extractor and ejector removed to prevent any false readings when using the headspace gauges.

Image relating to How to Check Headspace on an AR-15
Stripped bolt by AR-15 barrel

A go and a no go gauge are needed for this process. The go gauge is sized to the minimum allowable headspace while the no go is over the max.

Image relating to How to Check Headspace on an AR-15
A Go and No Go gauge

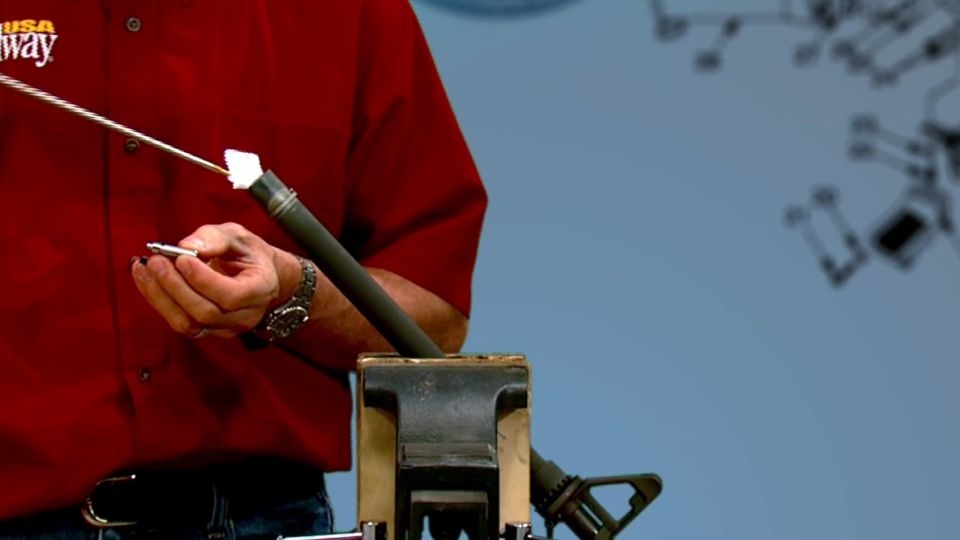

Because fouling brass shavings or other debris can affect the measurements, you must first clean the chamber thoroughly.

Image relating to How to Check Headspace on an AR-15
Clean all debris out of barrel

Insert the go gage into the chamber.

Image relating to How to Check Headspace on an AR-15
Go gauge goes first

Now slide the bolt into the barrel sleeve. You should be able to turn the bolt and engage the locking lugs completely. This lets us know that the chamber has at least a minimum amount of headspace.

Image relating to How to Check Headspace on an AR-15
Bolt should turn

Now repeat the process using the no go gauge.

Image relating to How to Check Headspace on an AR-15
No go gauge goes next

You should not be able to turn the locking lugs completely into battery.

Image relating to How to Check Headspace on an AR-15
Bolt should not turn

If you can then you have excessive headspace and should not fire the gun. A different bolt may correct the problem. Otherwise, you'll need to replace the barrel. In either case, the gun must pass the headspace test!

--Larry Potterfield
