Tubb SpeedLock Systems CS Firing Pin Spring Winchester Model 70 Post-64 Long Action Chrome Silicon

  • Product #: 288618
  • Manufacturer #: CS70L
{{::selector.productStatusBanner.alt}}
Tubb SpeedLock Systems CS Firing Pin Spring Winchester Model 70 Post-64 Long Action Chr...
  1. {{::image.alternatText}}
Our price was $16.99 now $14.99 1 at this price
You Save: $2.00 (11%)
  • {{fee.amount}} {{fee.description}}
Only 1 in stock - order soon!
Ships tomorrow from MidwayUSA

Product Overview

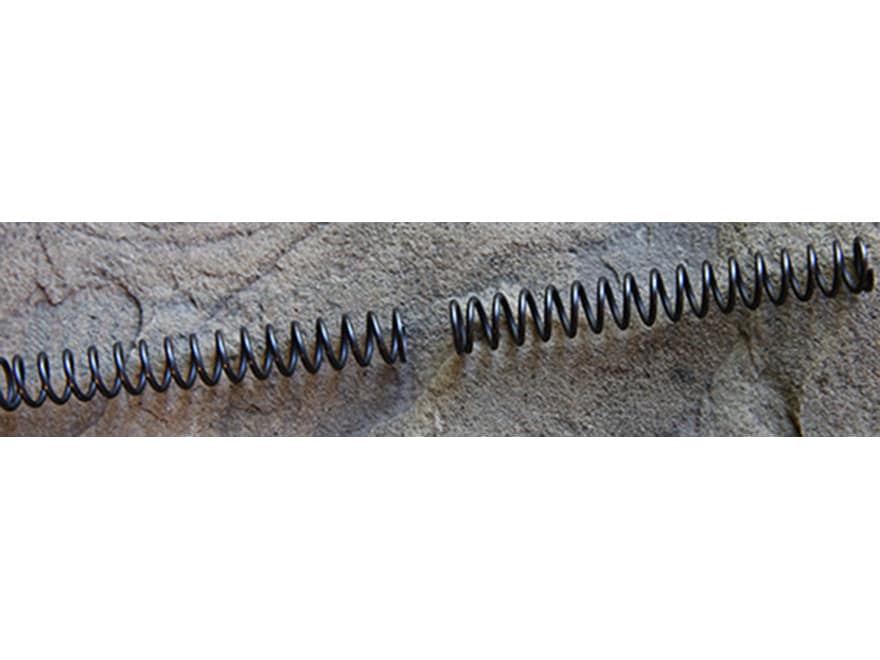

The Tubb SpeedLock Systems CS Duo Firing Pin Spring set is composed of two coil springs wound in different directions. One spring is wound clockwise, the other is wound counter-clockwise and when arrayed as a set, these springs coordinate to eliminate the radial biasing imparted by a single spring that is coiled in only one direction, essentially removes the twisting motion associated with the firing pins fall to impact. When a single coil is compressed, it twists like a screw turns. When it’s compressed, it winds in the “opening” direction. This twisting action is unavoidable, but can be offset by providing a set of differently wound springs. Each spring still twists, but each in opposite directions cancelling each other’s biasing out. Because they are wound in different directions, the springs cannot intertwine. Both coil spring ends are flat-ground to ensure perfect consolidation when installed.


David Tubb’s Chrome Silicon Duo Firing Pin Spring sets are still manufactured from the highest quality chrome silicon alloy and upheld to rigid 9002 Quality Control Standards yielding the highest quality, most consistent, and best performing spring available. All Tubb Precision CS springs are heat treated, stress relieved, and shot peened after winding to enhance grain structure, remove stresses, and maximize durability and stability; this guarantee’s extremely close tolerances in meeting our specification criteria. Conventional music wire springs cannot successfully be treated to these processes. As a result of our treatment process, our chrome silicon springs will lose less than 2% of their load over the first half-million compression cycles and no more than 7% over its life. A traditional spring can lose as much as 7% the first time it’s compressed.



Specifications
