Hanson Carbon Steel Taper Tap

  • Product Family #: 1007085270

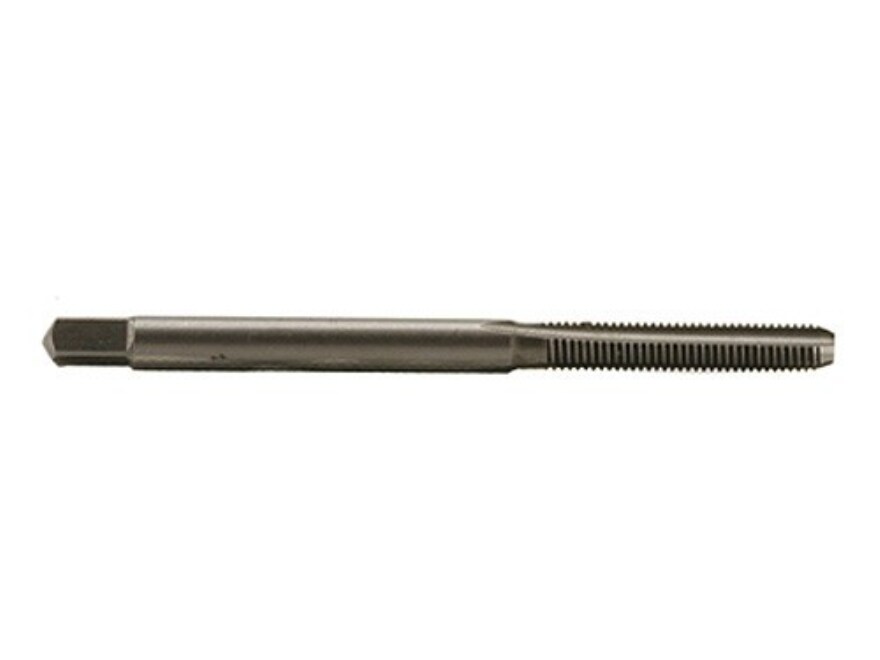

Hanson Carbon Steel Taper Tap
  1. {{::image.alternatText}}
Our price $3.39 through $5.09
  • {{fee.amount}} {{fee.description}}
Mixed Availability
Material: Carbon Steel

Product Overview

Hanson's high strength taps are useful for any number of machining projects, threading the interior surface of a hole to correspond with the desired thread pitch of a given screw, bolt or other part. This taper tap (also known as a starter tap) utilizes a pronounced chamfer that is 7 to 10 threads in length, creating a gradual cutting action that requires less torque than a plug tap due to the increased number of cutting teeth. Ideal for use when the material to be tapped is difficult to work, such as alloy steel, or when using more fragile, small diameter taps. Featuring a square drive head, the tap can be paired with a Hanson T-handle tap wrench (sold separately) for manual operation, or attached to a lathe or drill press for greater precision and speed.

Tap Types and Suggested Uses

  • Bottom tap has a chamfer (taper at the end) that is 1 to 2 threads long. Use for threading close to the bottom of blind holes.
  • Plug tap has a chamfer that is 3 to 5 threads long. The most common chamfer for use by hand or for machine tapping through blind holes.
  • Taper tap has a chamfer that is 7 to 10 threads long. Easier starting and requires less tapping torque because of the number of working teeth. Also known as a starter tap.
  • All taps have a square drive head. Size of square and overall length of tap will vary by tap size.
