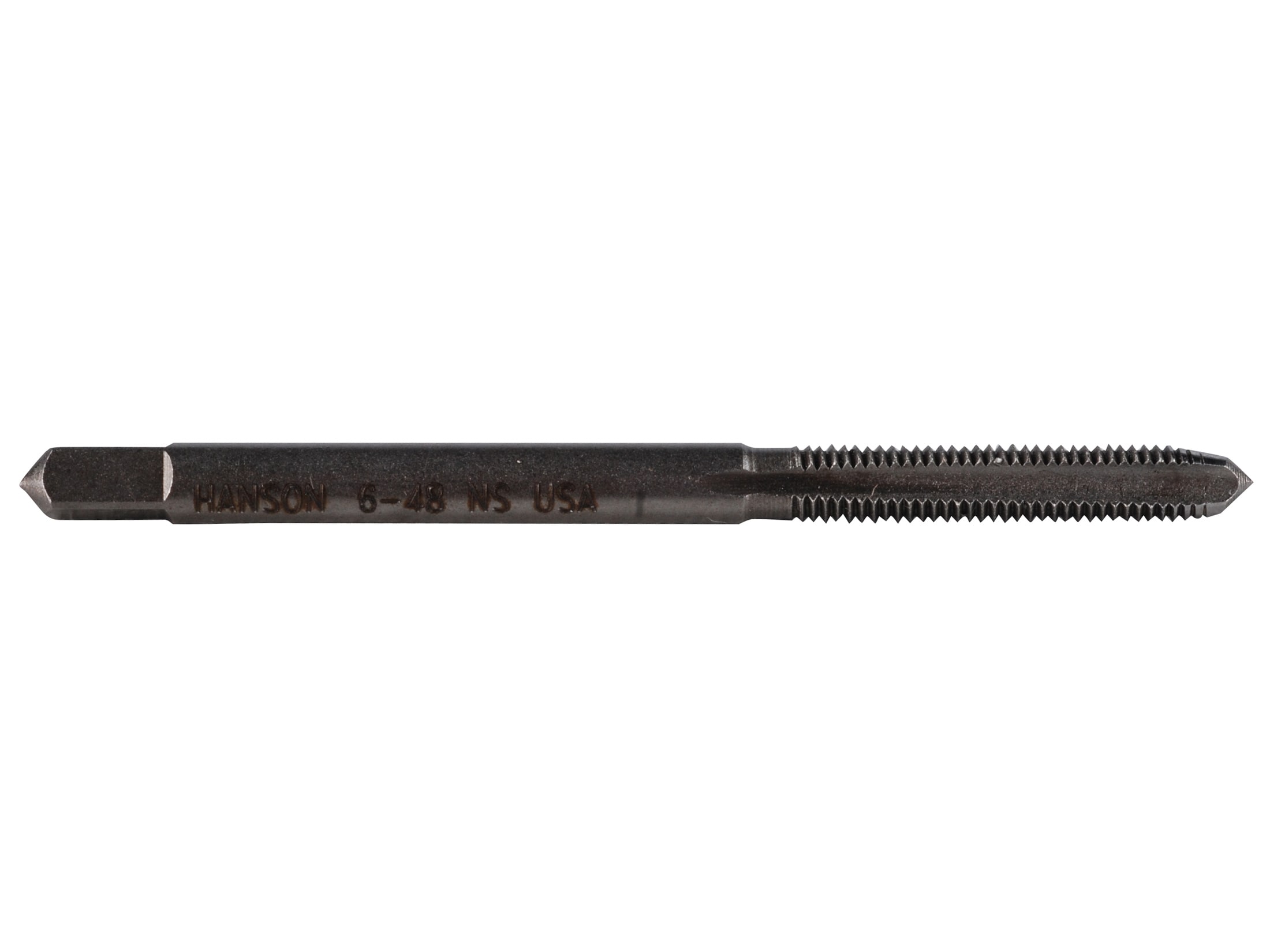

Hanson Carbon Steel Plug Tap

  • Product Family #: 1007086521
Hanson Carbon Steel Plug Tap
  1. {{::image.alternatText}}
Our price was $3.29 through $5.69 now $1.48 through $5.69
Save up to: $1.91 (56%)
  • {{fee.amount}} {{fee.description}}
Available
Material: Carbon Steel
Questions? Let us help! Chat Now

Product Overview

Hanson's high strength taps are useful for any number of machining projects, threading the interior surface of a hole to correspond with the desired thread pitch of a given screw, bolt or other part. This plug tap incorporates a chamfer (tapered cutting edge) that is 3 to 5 threads in length that helps to align and start the tap into an untapped or blind hole. Featuring a square drive head, the tap can be paired with a Hanson T-handle tap wrench (sold separately) for manual operation, or attached to a lathe or drill press for greater precision and speed.

Notes:
Tap Types and Suggested Uses

  • Bottom tap has a chamfer (taper at the end) that is 1 to 2 threads long. Use for threading close to the bottom of blind holes.
  • Plug tap has a chamfer that is 3 to 5 threads long. The most common chamfer for use by hand or for machine tapping through blind holes.
  • Taper tap has a chamfer that is 7 to 10 threads long. Easier starting and requires less tapping torque because of the number of working teeth. Also known as a starter tap.
  • All taps have a square drive head. Size of square and overall length of tap will vary by tap size.

Specifications
