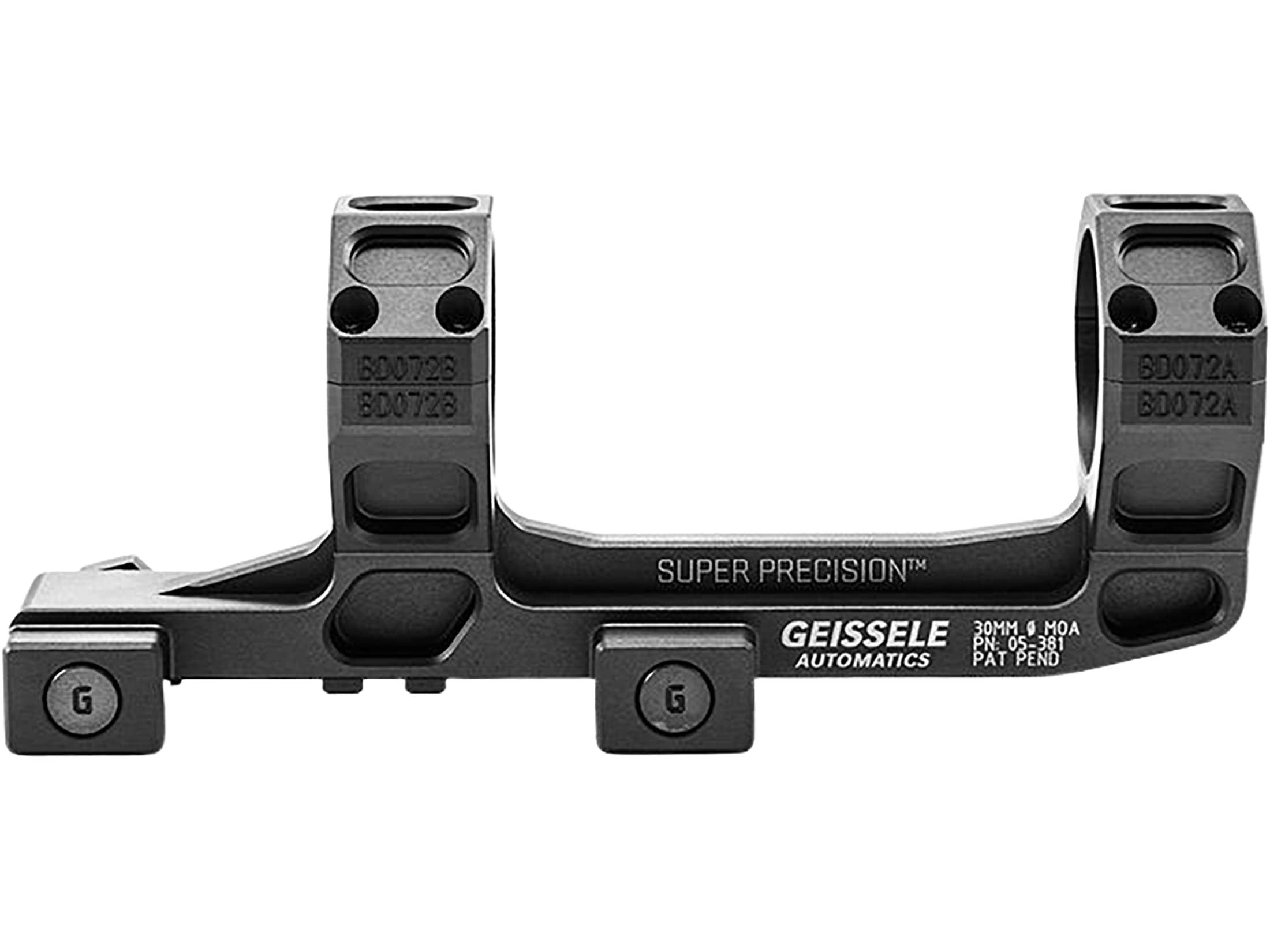

A U.S. Special Operation customer asked Geissele to make them an ultra high quality, bomb proof scope mounting system that met their mission critical return to zero requirements. The Geissele Super Precision Series of optic mounts were designed to meet their requirement and become the finest military sniper scope mounts.
Machined from a single 4.5 pound block of aircraft grade 7075 -T6 billet aluminum, the Super Precision Scope Mount is milled down to an ultra light 7.2 ounces. Each Geissele Super Precision Scope Mount will feature four shear lugs precision machined to the minimum tolerance of the MIL-STD-1913 Picatinny slot so that the optic stays in place from recoil and bolt carrier counter recoil.
The individually serialized scope caps are line bored with the body and created in a single operation, creating the best possible fit to the body of the optic so that the scope caps can be tightened without fear of crushing the body of the optic. The Geissele mounts are locked in place utilizing the classic, battle proven nut and clamp system which provides 1,400 pounds of clamping force per nut. This system provides more clamping force than any inferior lever system ever could.
Ring Height: (measured from rail to center of scope tube): 1.54"
Extension Length: (Measured from center of rear nut to rear of back ring):
- Standard= .63"
- Extended: 1.16"
- Standard: 5.3"
- Extended: 5.84"
Distance Between Rings (Inside): 2.8"
Distance Between Rings (Outside): 4.3"
Ring Width: 1.75"
- Designed to meet U.S. Special Ops demands
- Milled from a single 4.5lb block of 7075-T6 Billet
- Four shear lugs machined to keep mount in place from recoil and bolt carrier counter recoil
- Attaches to Picatinny Rail with nut and clamp system that provides 1400 lbs. of clamping force per nut
