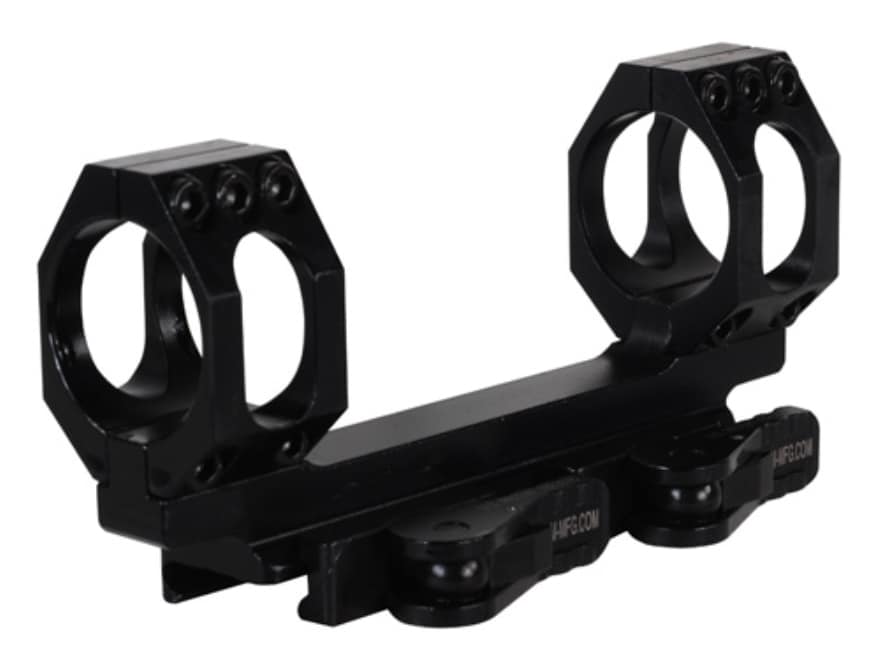

American Defense Recon-SW Quick-Release Scope Mount Picatinny-Style AR-15 Flattop Matte

  • Product Family #: 2626393212
American Defense Recon-SW Quick-Release Scope Mount Picatinny-Style AR-15 Flattop Matte
  1. {{::image.alternatText}}
List price was $193.00 through $204.00 our price $183.35 through $193.80
  • {{fee.amount}} {{fee.description}}
Product is Mixed Availability
Made in USA
Material: Aluminum
Style: Picatinny
Piece: 1
Questions? Let us help! Chat Now

Product Overview

The AD-RECON-SW mount is made for putting high power glass onto a flattop style AR-15 or bolt action rifle. This is a straight up mount with no forward offset. The rings are spaced farther apart to fit long tube scopes such as the Schmidt & Bender scopes. Also fits the US Optics TPAL Scopes equipped scopes. It is precision machined from 6061 T6 aluminum and finished in hard coat T3 Mil-Spec anodize. It features the Patented QD Auto Lock Lever system to accommodate both in spec and out of spec rail systems.


Technical Information

Material: 6061 T6 Aluminum

Finish: Matte Black

Length: 5.20"

Distance Between Rings: 3.25"

Style: Picatinny

Ring Height: (Center Line of Optic to Top of Base)

  • 1"=1.380"
  • 30mm=1.470"
  • 34mm=1.550"
  • 35mm=1.570"

Operation Instructions:

  • Make sure your firearm is unloaded and the muzzle is pointed in a safe direction
  • Familiarize yourself with the mount and it's parts
  • Unlock the mount. To do this, depress the lock button and move the lever 180 degrees to the unlocked position
  • Install assembly onto rail and move lever to the locked position
  • Check tension to close. Correct tension is the maximum amount of tension you can apply with your hand to move the lever to the closed position. A little judgment and personal preference is needed here.
  • To set the tension for the lever, turn the adjustment screw one click at a time until the proper feel is reached. To tighten, turn the screw clockwise. To loosen the tension, turn it counterclockwise. This may take a few tries to get it exactly where you want it.
  • Torque Ring Screws to 20-25 in/lbs.

Features

  • Does not require proprietary tools for adjustment.
  • Can be adjusted with your finger or a flat blade screwdriver.
  • Lever can be configured to lock to the front or the rear.
  • Superior clamping surface to insure maximum rail engagement.

Made In United States of America
