American Defense Recon-H Quick-Release Scope Mount Picatinny-Style AR-15 Flat-Top Matte

  • Product Family #: 2626411022
American Defense Recon-H Quick-Release Scope Mount Picatinny-Style AR-15 Flat-Top Matte
  1. {{::image.alternatText}}
List price was $215.00 our price $204.25
  • {{fee.amount}} {{fee.description}}
Available
Made in USA
Finish: Matte Black
Material: Aluminum
Piece: 1
Elevation: None
Questions? Let us help! Chat Now

Product Overview

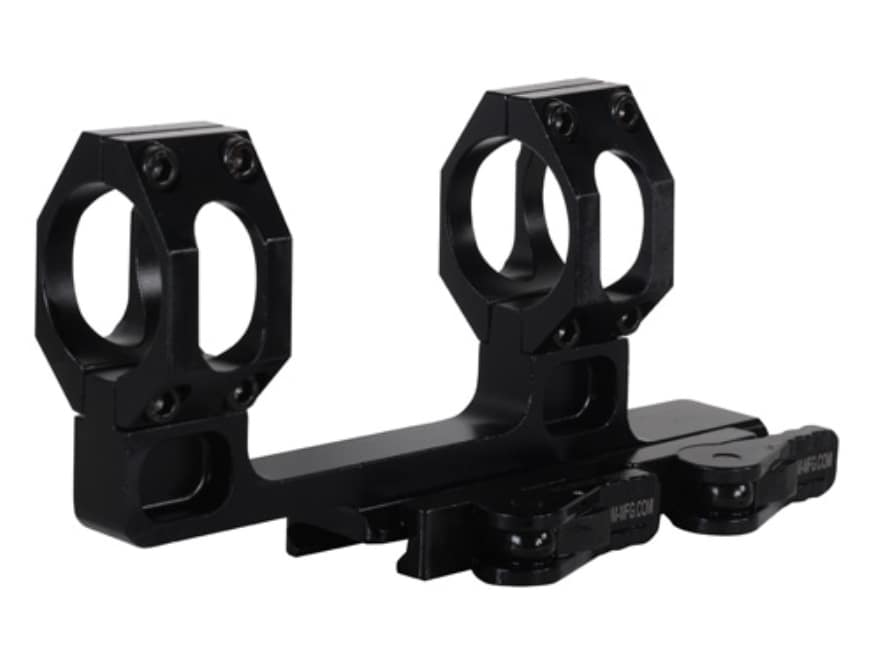

The American Defense Recon-H Quick-Release Scope Mount is made for putting high power glass onto a flattop style AR-15. The AD-RECON-H is taller than other Recon mount models. It is precision machined from 6061 T6 aluminum and finished in hard coat T3 Mil-Spec anodize. It features the patent pending Auto Lock Lever system to accommodate both in spec and out of spec rail systems.

Height (Center line of scope tube to top of mounting base):

  • 1"=1.840"
  • 30mm=1.930"

Operation Instructions:

  • Make sure your firearm is unloaded and the muzzle is pointed in a safe direction
  • Familiarize yourself with the mount and it's parts
  • Unlock the mount. To do this, depress the lock button and move the lever 180 degrees to the unlocked position
  • Install assembly onto rail and move lever to the locked position
  • Check tension to close. Correct tension is the maximum amount of tension you can apply with your hand to move the lever to the closed position. A little judgment and personal preference is needed here.
  • To set the tension for the lever, turn the adjustment screw one click at a time until the proper feel is reached. To tighten, turn the screw clockwise. To loosen the tension, turn it counterclockwise. This may take a few tries to get it exactly where you want it.
  • Torque Ring Screws to 20-25 in/lbs.
Made In United States of America
